How to create dimensions

Dimensions in Lightdash come from the columns defined in your dbt project

Declare columns in your dbt projects#

Once you've launched your Lightdash project you should be able to see a list of all of the models from your connected dbt project.

screenshot-tables-view

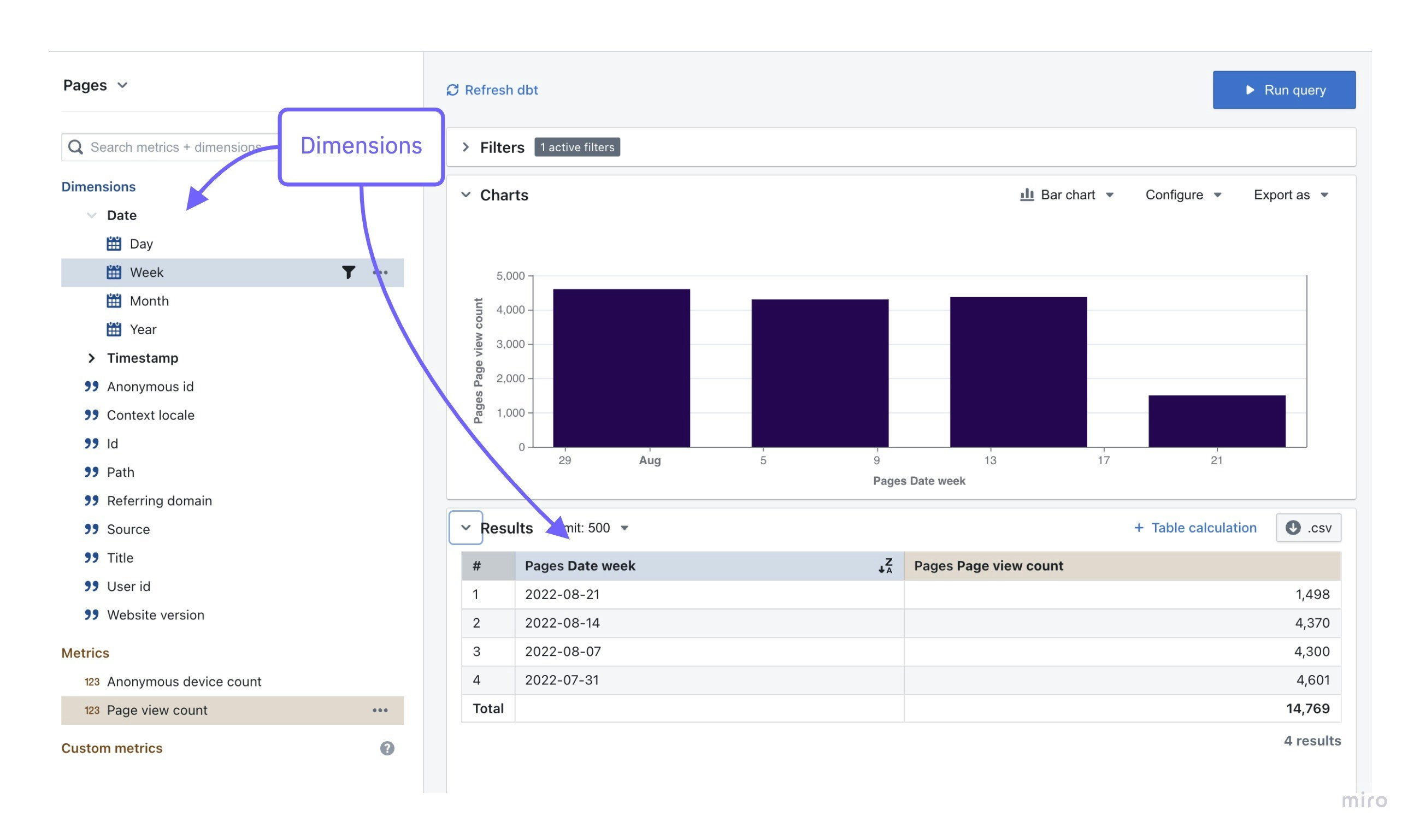

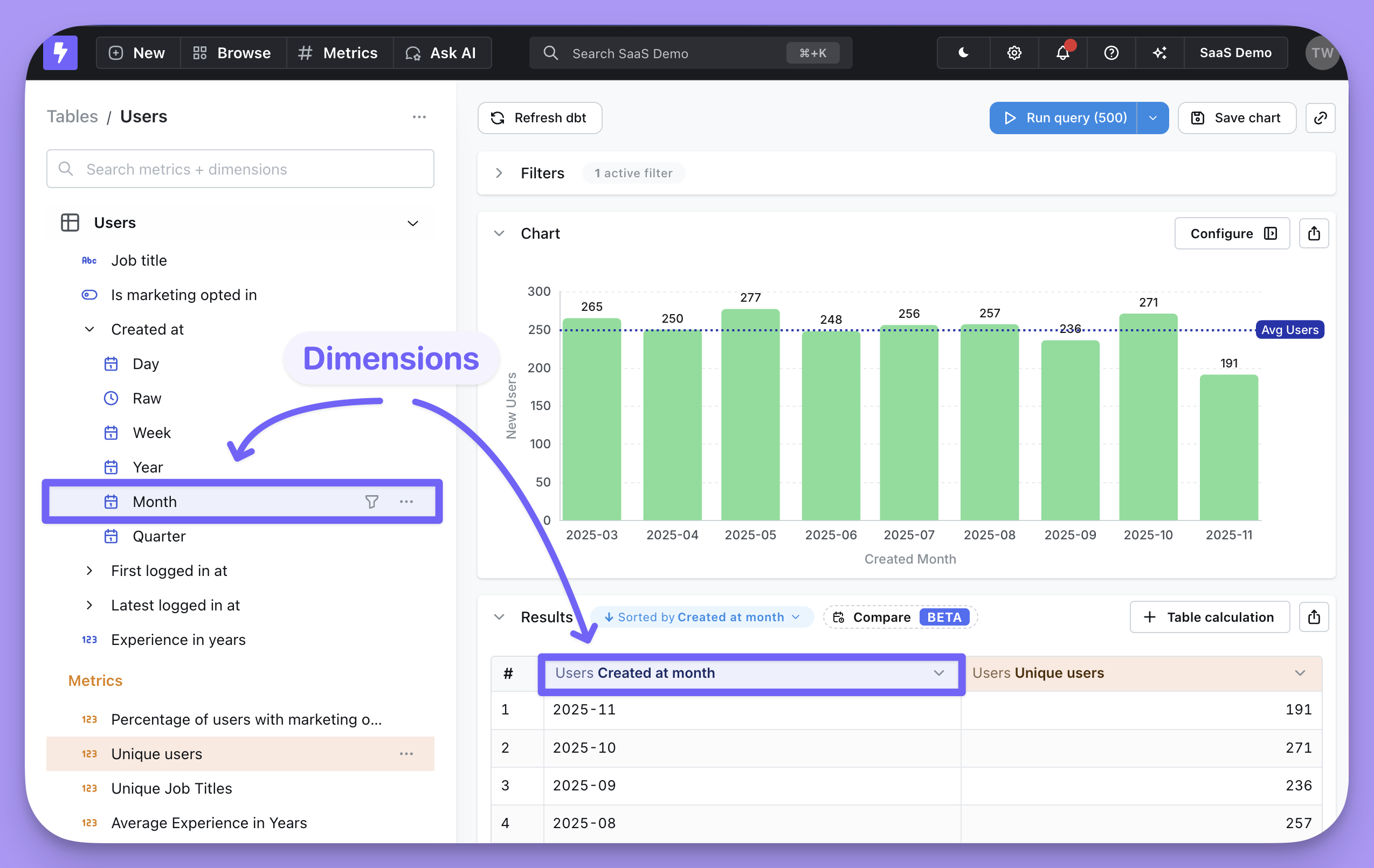

If you click on any of the models within your Lightdash project, you'll see the dimensions and metrics for that model listed on the left side.

The dimensions you see in Lightdash are the columns that you've defined in your model's dbt YAML file. If you include descriptions for your columns, these will be pulled into Lightdash automatically!

info

For a dimension to appear in Lightdash, you need to declare it as a column in your YAML file.

version: 2
models:
- name: users
description: "One row per user_id. This is a list of all users and aggregated information for these users."
columns:
- name: user_id
description: 'Unique identifier for a user.'

screenshot-dimension-info

Next steps#
