Add headless browser on self-hosting

We use a chrome headless browser to generate images from your charts and dashboards so we can send them via email or Slack.

Images can be requested on Slack unfurl or using our Scheduler

If you are running Lightdash on self-hosting, you will also have to run this headless browser on your infrastructure.

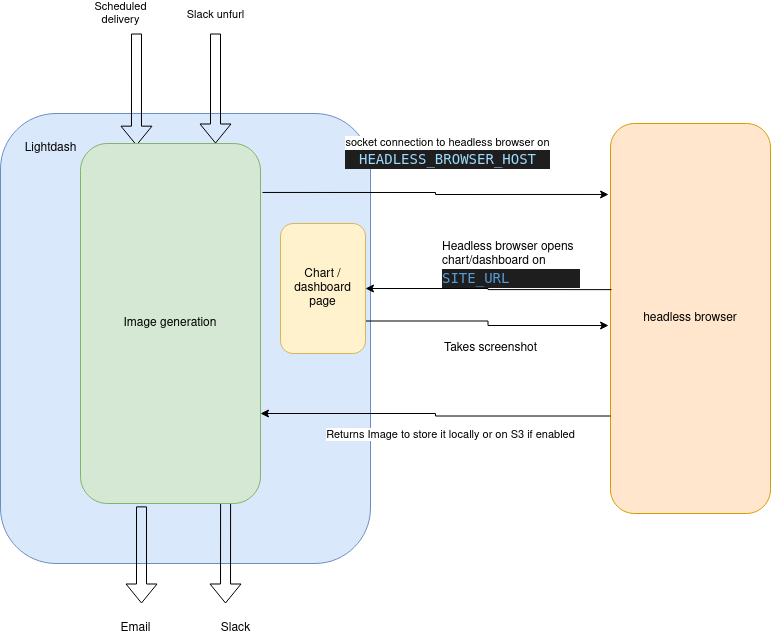

How it works​

When Lightdash needs to generate an image, it will open a new socket connection to the headless browser on ws://HEADLESS_BROWSER_HOST:HEADLESS_BROWSER_PORT

Then using puppeteer we will browse the chart/dashboard on lightdash on SITE_URL

We load the chart/dashboard on the browser and then a screenshot when it finishes loading

Then we store that image in S3 (if enabled) or locally and then return the image URL.

If the image was requested by Slack unfurl, we will unfurl the image using the Slack API. If the image was requested by Scheduler, we will send the image to the destination(s) (email or Slack)

Configure headless browser on Lightdash​

In order to make this work, there are a few key ENV variables that need to be configured correctly.

  • HEADLESS_BROWSER_HOST : If you're running docker, this could be headless-browser, or localhost if you're running it locally (or with network:host)
  • HEADLESS_BROWSER_PORT : Optional port for headless browser, defaults to 3001
  • SITE_URL : The URL for your Lightdash instance.
info

This SITE_URL variable (eg: https://eu1.lightdash.cloud) needs to be accessible from this headless browser service, either by a local connection, or via Internet. Otherwise it will not be able to open a page and generate the image.

This means that if you are using docker locally, make sure the headless browser pod can reach the lightdash pod. Or follow the docker documentation to enable network:host
