This feature is in beta. Reach out to the Lightdash team if you’d like to get access.
Maps display geographic data on an interactive map. They support three visualization modes: Map types:

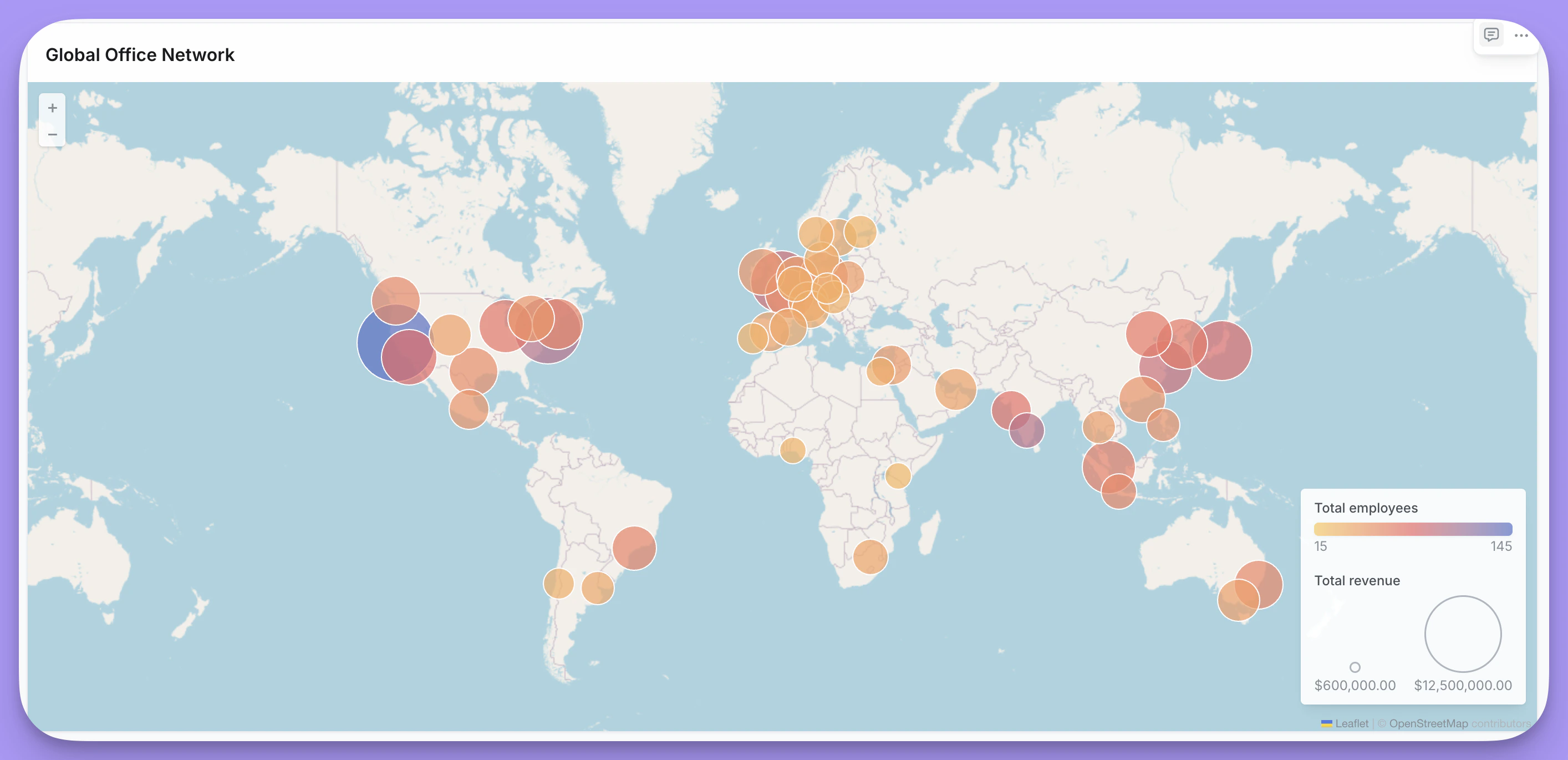

  • Scatter - Plot individual points using latitude/longitude coordinates

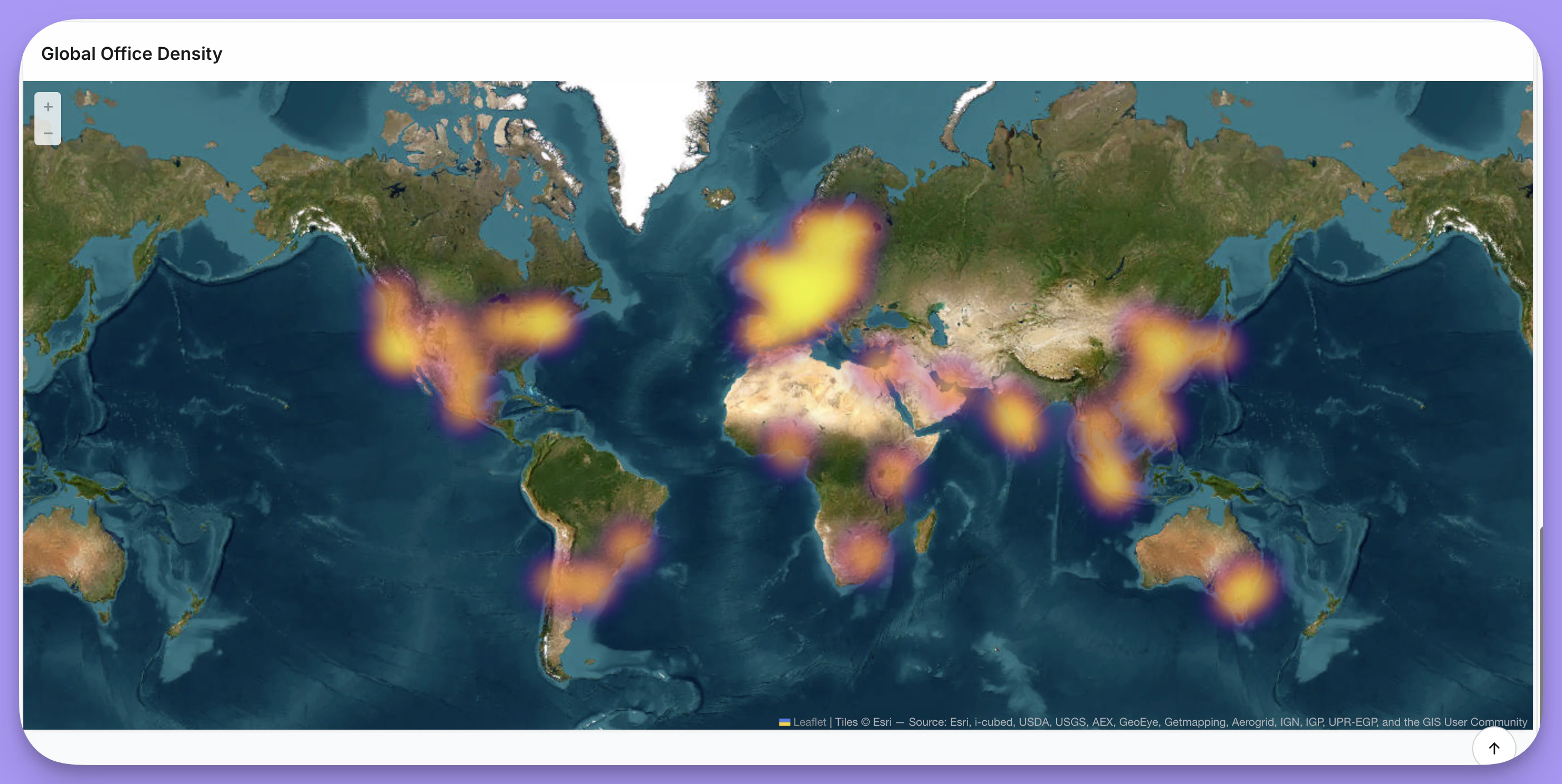

  • Heatmap - Show density of points as a heat overlay

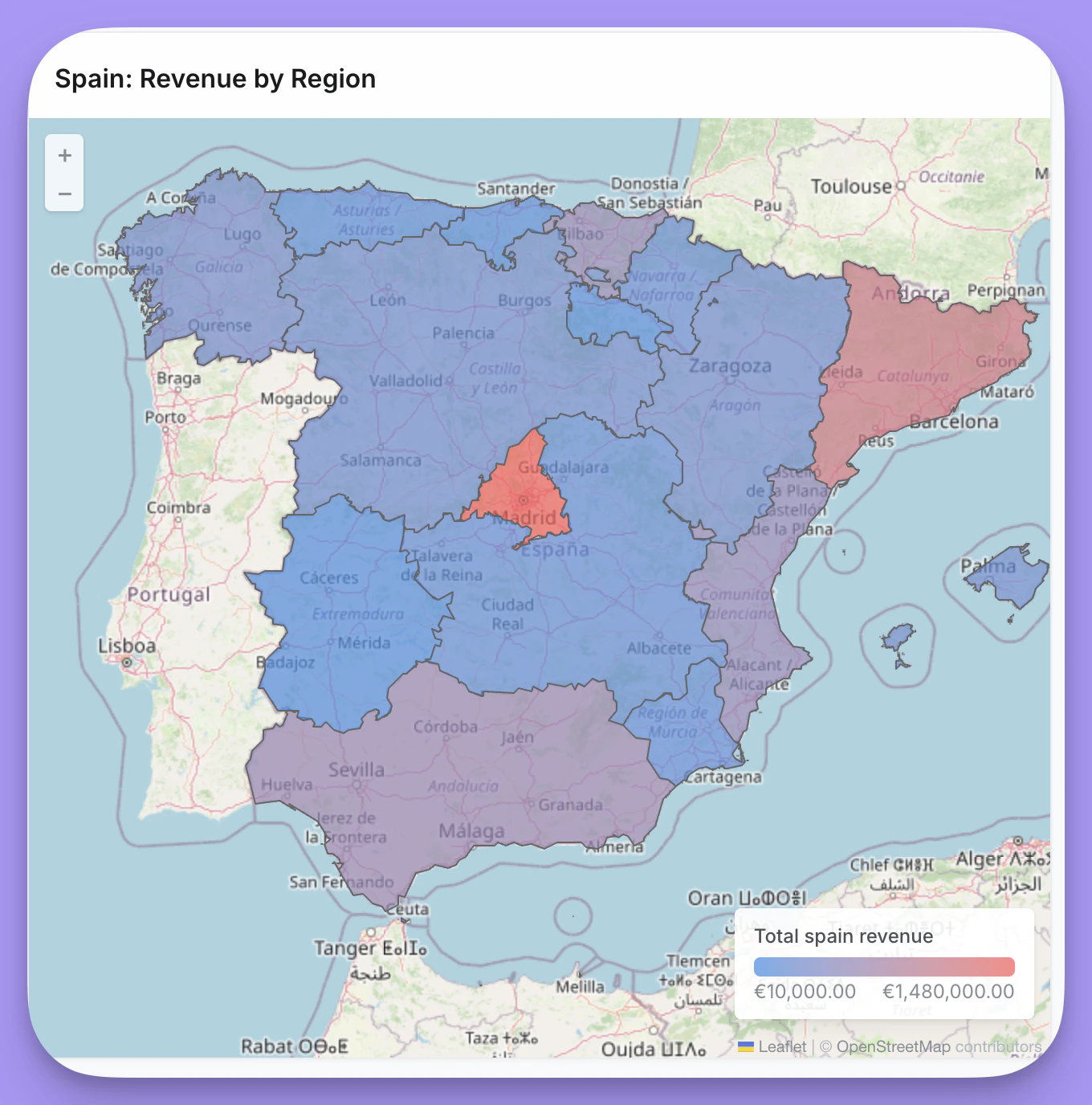

  • Area (Choropleth) - Color regions based on values
Maps are useful when:
  • Visualizing geographic distribution of data
  • Showing regional performance or metrics
  • Displaying location-based patterns

​
Data requirements

The type of geographic data you have determines which map visualization you can use:
  • Latitude and longitude coordinates - If your data includes lat/lon fields, you can create scatter maps, bubble maps, or heatmaps to plot individual points.

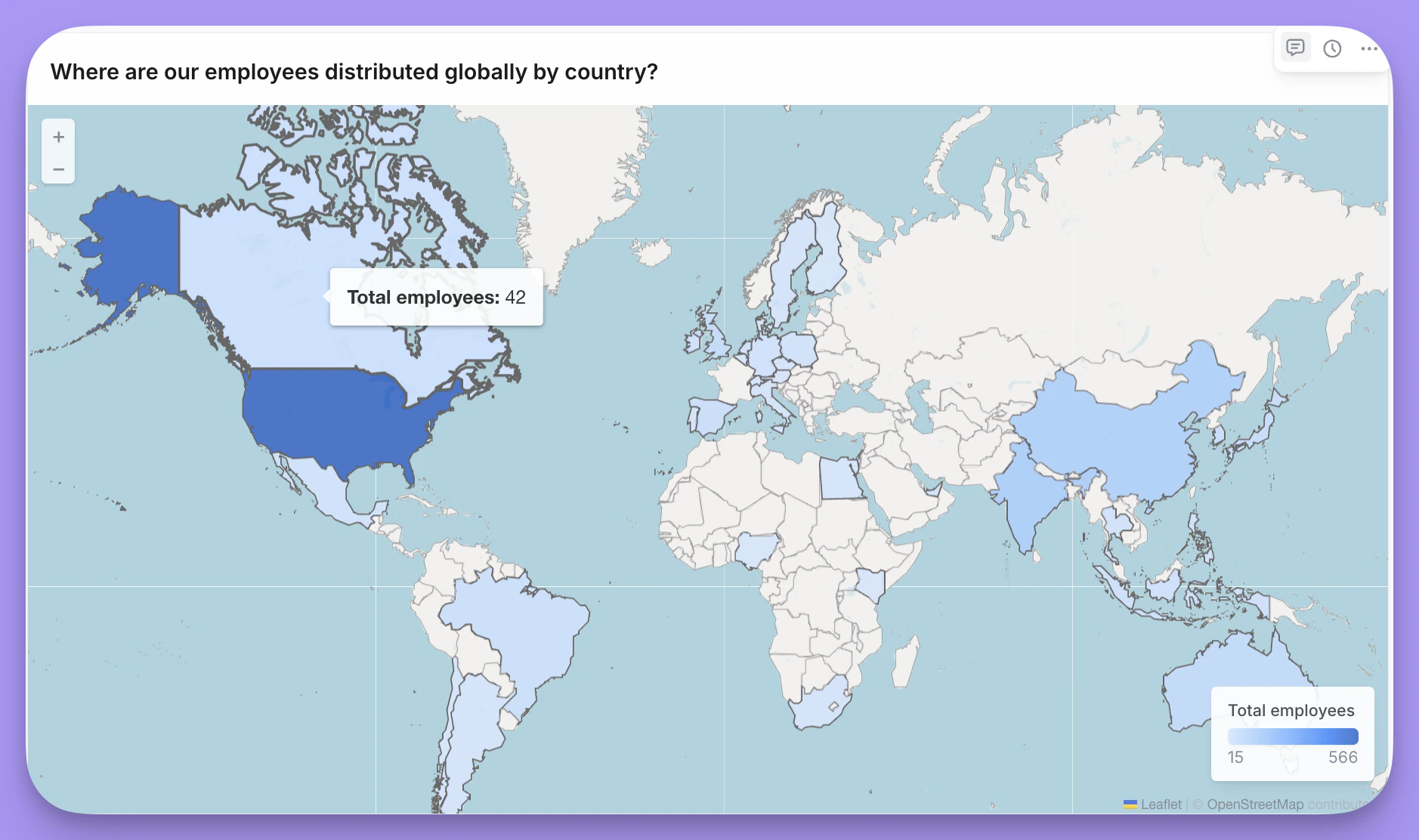

  • Country codes or US state codes - If your data contains standard geographic codes (like ISO country codes or US state abbreviations), you can create choropleth maps using the built-in region shapes.
  • Custom geographic identifiers with GeoJSON - If your data uses other geographic identifiers (like postal codes, sales territories, or custom regions), you can create choropleth maps by providing a custom GeoJSON file that defines the region boundaries.

​
Layout options

Map type - Choose between Scatter, Heatmap, or Area modes. For Scatter/Heatmap:
  • Latitude field - Field containing latitude coordinates
  • Longitude field - Field containing longitude coordinates
For Area (Choropleth):
  • Map region - World, Europe, US, or Custom
  • Custom region - Toggle to use a custom GeoJSON URL
  • Region field - Field containing region names to match
Value field (optional) - Metric to determine color intensity.

​
Display options

Color range:
  • Configure gradient colors (2-5 colors)
  • Low to high color mapping
Legend:
  • Show/hide legend
Background map:
  • None, Light, OpenStreetMap, Dark, Satellite
  • Custom background color (when None selected)

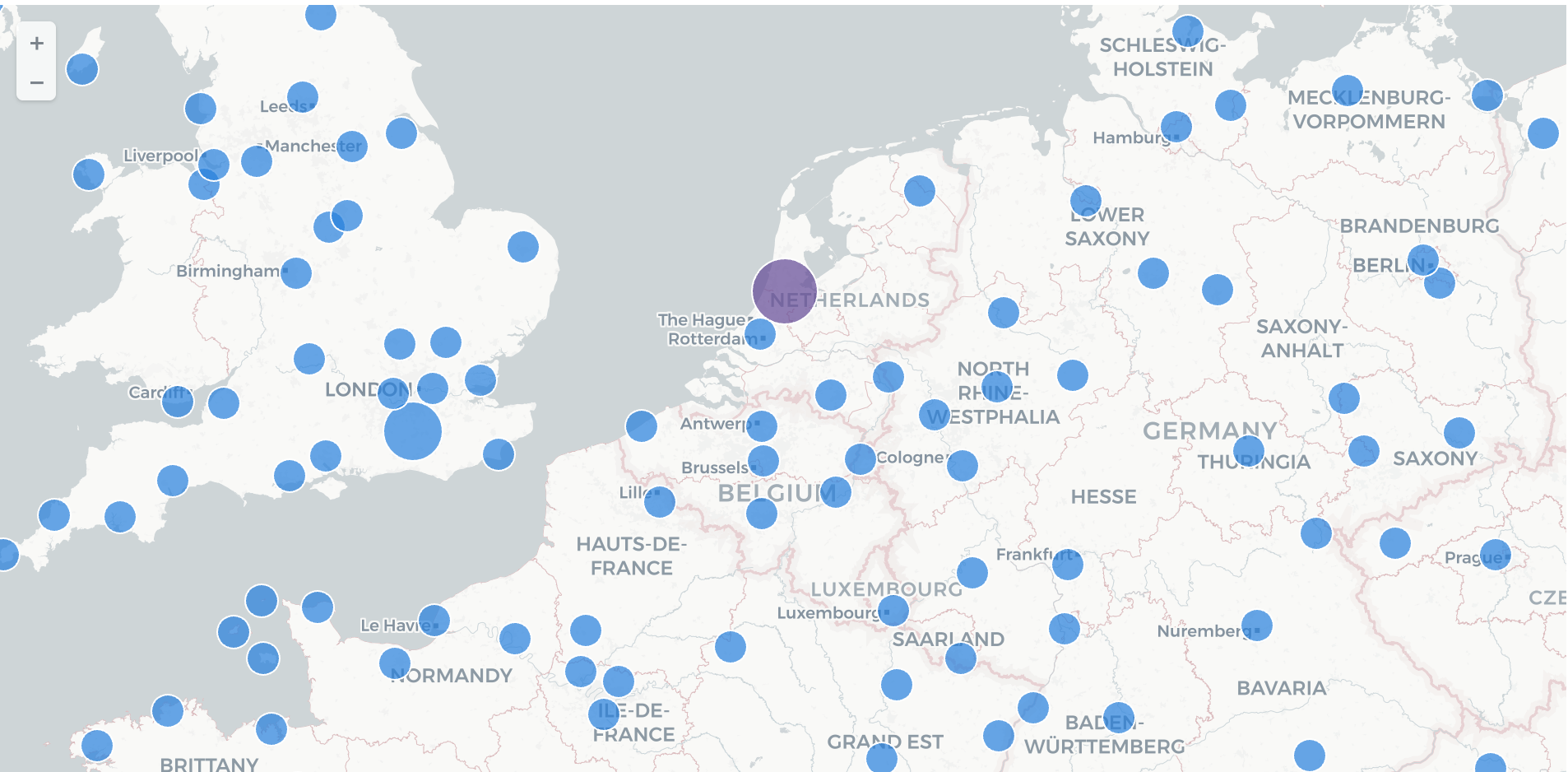

Bubbles (Scatter mode only):
  • Size based on field (optional)
  • Size range slider (min/max bubble size)
Map extent:
  • Save current map extent - Preserves zoom/pan position
